Introduction

Lithium-ion batteries of the 18650 format have emerged as one of the most common rechargeable systems across the globe, with a rated capacity determining their performanc . These cylindrical powerhouses found in a range of devices maintain their name because they fit dimensions of 18mm diameter and 65.0mm length. The wide usage of 18650 batteries produces numerous incorrect beliefs about their correct charging techniques. The correct way to charge 18650 batteries delivers both safety and optimized battery life span in addition to efficient usage.

The guide presents complete insights about 18650 battery charging duration factors and safe and efficient charging procedures alongside appropriate techniques for optimizing battery performance. Readers who appreciate battery tech and users of devices with 18650 batteries along with others curious about cell technology can benefit from this detailed analysis about the correct charging duration for such batteries.

Understanding 18650 Battery Basics

What Makes 18650 Batteries Special

The lithium-ion battery in 18650 form has become the essential element for portable power supply needs. The battery cells of such form factor produce a nominal voltage running from 3.6V to 3.7V while maintaining stored energies between 1800 and 3600 mAh depending on production specifications and brand. These cylindrical cells maintain high energy density along with reasonable economic value and standard dimensions that make them suitable for widespread applications.

The typical LiCoO₂ cathode linked with a graphite anode structure serves as the foundation of the battery chemistry yet alternative versions including manganese, nickel, and aluminum-based versions are used to optimize performance parameters. This particular chemical composition enables 18650 cells to outperform previous battery technologies by providing higher energy storage density together with slow self-discharge and no memory-effect phenomenon.

Capacity and Its Impact on Charging Time

The capacity measurement of 18650 batteries is expressed in milliampere-hours (mAh) as one of their essential specifications. The capacity rating indicates the maximum charge amount of energy an 18650 battery stores inside its structure. Batteries with stronger capacity deliver devices can stay operational for extended periods without charging but need longer recharge time to reach their full capacity .

The time needed for charging 2000mAh battery remains shorter than the charging period of 3500mAh battery under the same charging current conditions. When capacity is constant all other factors remain equal the charging time extends by 75% when moving from a 2000mAh battery to a 3500mAh battery.

The Chemistry Behind Charging

The charging of lithium-ion batteries requires multiple electrochemical functions to operate. When charging begins lithium ions transfer from the cathode station to the anode station with electrolyte solution while passing through the separator mechanism. The battery charging procedures need precise regulation to stop structural harm and extend service life.

The standard charging technique for modern 18650 batteries adopts CC-CV (Constant Current-Constant Voltage) technology. At the start of charging the device receives a smooth stream of constant current from the supply while the voltage level increases progressively. A charger adopts a two-stage process for charging 18650 cells by first maintaining 4.2V voltage for most cells until the charge is complete (maximum voltage). This constant voltage phase continues until the current reaches zero.

Factors That Determine Charging Time

Battery Capacity and State of Charge

The amount of time required for charging 18650 batteries depends on the milliampere-hour (mAh) measurement of electrical storage capacity. The recharge duration of batteries increases when their capacity rises because additional energy is needed to complete charging. Consumer-grade 18650 batteries available on the market cover a capacity range from 1800mAh to 3600mAh but specialized high-performance variants reach as high as 3800mAh.

The current state of battery charge (SoC) demonstrates significant influence on the charging process. The time needed for battery recharging depends directly on how low the current battery power level currently stands compared to complete battery depletion. The battery follows a linear charging pattern in its normal operational zone yet this linearity changes when reaching extreme low or high charge levels due to the chemical properties of lithium-ion cells.

Charging Current (C-Rate)

Charging speed depends heavily on the value of C-rate because it defines the charging current input to the battery. Battery charging at a speed equivalent to its capacity is defined as 1C which serves as a specific charge measurement relative to battery power potential. The 2A current power used for charging the 2000mAh battery represents 1C.

The safe charging limits for 18650 batteries extend between 0.5C and 1C. The acceptance rate of high-drain applications for quality batteries reaches up to 2C but standard and aged cells with poor performance should remain below 0.5C charging rate. The time required for battery charging decreases in direct proportion to the selected charging current although operating above recommended charging rates presents safety threats that can harm battery cells.

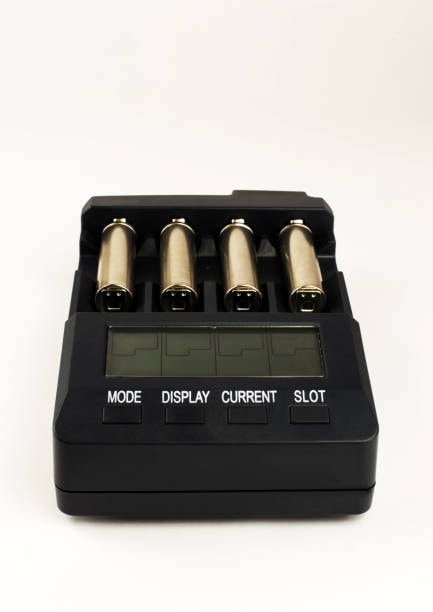

Charger Specifications and Quality

Battery charging safety as well as duration directly correlate with the specifications and quality attributes of the charging device. Due to safety reasons a proper lithium-ion charger for 18650 batteries should include the CC-CV charging protocol along with overcharge protection and multiple built-in protection mechanisms.

• Over-voltage protection
• Over-current protection
• Temperature monitoring
• The device automatically shuts off the charging operation after completion

A basic charger restricts the charging current to 0.5A which expands the total charging duration. Complex chargers provide selectable current output settings starting from 0.25A to 2A and beyond to achieve quicker charging periods.

Temperature Effects

The temperature affects how fast a battery charges and its overall lifespan. The lithium-ion batteries work best with charging within a temperature range between 50°F to 86°F to reach maximum charge efficiently . The battery charges best within these temperatures because performance drops when you charge using hot or cold weather.

When temperatures remain below 10°C (50°F) normal battery reactions diminish and create more electrical resistance which lengthens charging duration. Extremely cold thermal conditions that fall below freezing will produce lithium plating and endanger battery longevity.

When charging at temperatures greater than 86 degrees Fahrenheit (30 degrees Celsius) initial charging speed increases yet the safety features of the charger step in to lower charging current to avoid overheating. Batteries age more quickly when they receive power at warmer temperatures.

Typical Charging Times for 18650 Batteries

Standard Charging Scenarios

When charging with a standard charger and normal currents 18650 batteries move through step-by-step processes easily predicted by users. Under normal charges at different capacity levels these batteries follow specific time patterns.

• 2000mAh battery:
  • At 0.5A: Approximately 4-5 hours
  • At 1.0A: Approximately 2-2.5 hours
• 3000mAh battery:
  • At 0.5A: Approximately 6-7 hours
  • At 1.0A: Approximately 3-3.5 hours
• 3500mAh battery:
  • At 0.5A: Approximately 7-8 hours
  • At 1.0A: Approximately 3.5-4 hours

The total charging phase lasts during both constant current and constant voltage phases which includes the diminishing current towards completion. Real charging times depend on how well the charger works and how old the battery is plus what temperature it operates in.

Fast Charging vs. Standard Charging

The fast charging method enables faster power transfer with bigger electrical current flow. Fast charging benefits us most but shortens battery life. Standard and fast charging methods have these differences in charging performance.

• Fast charging (2A or higher):
  • 3000mAh battery: Approximately 1.5-2 hours
  • Advantages: Significantly reduced charging time
  • The fast charge system produces extreme heat which could harm the battery during use.
• Standard charging (0.5A to 1A):
  • 3000mAh battery: Approximately 3-7 hours
  • The method gently charges batteries to preserve their durability while keeping them cooler.
  • Disadvantages: Longer waiting times

When the power intensity stays steady during charging the time benefit of rapid charging decreases. During the early stages of charging, the first 80% of the battery power fills up swiftly yet the remaining 20% requires extra charge time. regardless of the initial current level.

Theoretical vs. Actual Charging Times

Using battery capacity and charging current you can estimate how much time charging will take. A 3000mAh battery charged using 1A electrical power should completely charge in exactly 3 hours. The actual charging process ends up taking longer than the expected time because of these main reasons:

1. Charger efficiency (typically 85-95%)
2. The power flowing into the battery decreases when the charger enters the fixed voltage phase
3. The electrical resistance inside your battery grows as it grows older.
4. Battery energy turns into heat while charging process takes place
5. The device features safety circuits that slow power flow when specific criteria are reached

Good chargers display charging completion by converting a red LED light to green or switching to a different indicator.

Safe Charging Practices

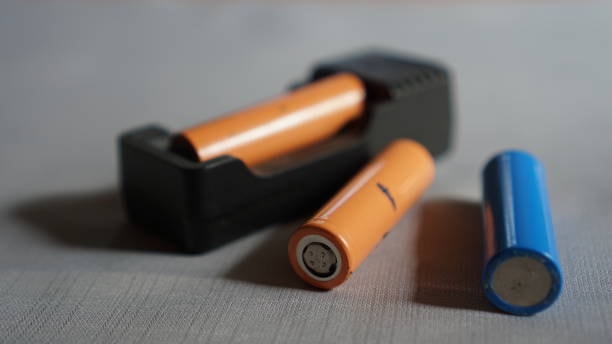

Selecting the Right Charger

Using the proper charger helps ensure battery safety while maintaining its best potential functions. While choosing a special charger for 18650 batteries you should consider these traits:

• Designed lithium-ion battery chargers that use CC-CV charging protocol
• Safety certifications from recognized organizations
• These batteries come with safety features such as electrical surge, temperature and voltage protection.
• The charger stops power injection at the moment the charging process ends correctly
• Electrical pathways should function separately when powering more than one battery.

Stick with branded lithium-ion battery chargers that have been built to properly handle 18650 cells. Universal chargers that work with all batteries do not contain essential charging protocols for 18650 batteries so they produce unsafe and inefficient results.

Optimal Charging Current

A moderate charging rate helps batteries last longer than quick charging speed. A balance between efficient charging speed and battery life is achieved through 0.5C to 0.7C charging current for normal usage. The best charge rate for 3000mAh batteries should fall within the range of 1.5A to 2.1A.

To make batteries last longest you should recharge at 0.3C to 0.5C (1.5A to 1.5A for a 3,000 mAh battery). The slow charging speed helps prevent damage to battery cells and creates less internal heat buildup.

Temperature Considerations

Battery health and safety depend on controlling battery temperature during charging processes.

• Store and recharge batteries in temperature ranges between 0 to 32°F and 113 to 45°F
• You need to have proper air circulation near the charger equipment.
• Keep the charger open to the air and put it on stable surfaces without heat sensitive materials
• Pick chargers that check temperature levels automatically during charging
• Leave batteries to cool down naturally before putting them on charge after using them in power-demanding devices.

Control your charging current when you detect warmth on battery power. When a lithium battery charges at high temperatures, using the right charger can help mitigate overheating risks.

Signs of Overcharging and How to Avoid It

Current 18650 batteries use charging protection systems to stop overcharging. Yet users should still learn when these electronic devices show signs of damage.

• The battery feels too hot when charging occurs.
• Swelling or deformation of the battery
• Unusual odors during charging
• The charging time took too long than expected.

To avoid overcharging:

• Use battery chargers built explicitly for lithium-ion 18650 battery charging only
• Keep an eye on charging batteries since long unattended charging is unsafe
• Users should physically disconnect any batteries from their charger once they reach full charge.
• Replace old or damaged chargers
• Choose battery chargers that turn off automatically

Maximizing Battery Lifespan Through Proper Charging

Optimal Charge Levels for Longevity

Storing lithium-ion batteries at 100% charge has a negative effect on their lifespan. For maximum lifespan:

• Charge only up to 100% when it is needed
• The best range for everyday battery use lies between 20% and 80%
• Use 100% charge only when you need the full power right away
• Keep the battery from dropping beneath 20% level in normal use

Modern high-end gadgets feature built-in settings which limit charging to 80-85% unless users choose to upgrade to 100% for special runtime needs.

Charging Frequency vs. Depth of Discharge battery charger

During battery charging you should only use a specific portion or percentage of its total power storage. Batteries work better when drained only slightly rather than fully.

• Repeating small power fractions helps extend battery life better than doing only few deep power cycles effective charging
• Working with a 50% discharge level during charging helps batteries survive longer than steady 0% discharging.
• Regularly charging the battery is better than letting it reach low power levels before recharging.

From 300 up to 500 charging cycles works best at 100% depth of discharge in a standard 18650 battery. On the other hand it can handle around 2000 charges when using 20% depth of discharge compact chargers.

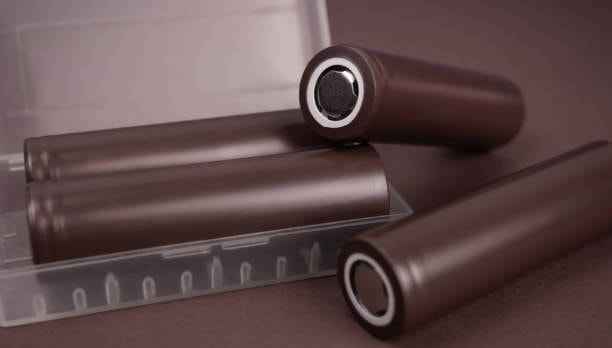

Storage Charging Best Practices constant voltage

To keep 18650 batteries usable for long-term storage do these things.

• Keep the charge between 40% and 60% by not allowing it to reach full or zero capacity
• Keep batteries in a temperature around 15°C (59°F) that slots below room temperature
• Verify battery power every three to six months to maintain its usable lifespan.
• Avoid storing in extreme temperatures
• Use insulated containers to secure the batteries from electrical short circuit risk

Correctly storing 18650 batteries will help them stay usable for longer even when unused for extended periods.

Common Questions About 18650 Battery Charging

Can I Use Any Charger for My 18650 Battery?

You cannot charge 18650 batteries with any charger you find. 18650 li ion batteries call for charging procedures that maintain CC-CV control. with built-in protective elements. Not using specialized chargers endangers your battery by damaging it and shortening its usable time. Use battery chargers designed by experienced lithium-ion 18650 battery makers for safe charging results stop charging.

Is It OK to Leave 18650 Batteries Charging Overnight?

Despite safety functions most chargers need you to unplug 18650 batteries from the charger at the end of the charging period. Modern chargers have safety features but electrical problems can develop and become dangerous if you leave your battery charging overnight. Continued observation helps prevent battery damage during charging so remove them when the charge process ends general guidelines.

How Can I Tell When My 18650 Battery Is Fully Charged?

The majority of 18650 chargers use lights to show when cells reach their full charge status.

• The LED indicator light turns from red into green as charging completes
• The device shows its battery status on digital screen current drops current drops.
• Automatic shut-off of charging current

A battery monitor will show 4.2 volts when the 18650 battery receives sufficient charge. Protected batteries show lower voltage on their measurement terminals because of the charging circuit.

Does Fast Charging Damage 18650 Batteries?

Quality 18650 batteries do not suffer harm during 1C fast charging processes, ensuring optimal performance . High charging rates faster than 1.5C-2C can destroy batteries by these harmful effects fast charger.

• Increased heat generation
• Accelerated SEI layer growth
• The battery risks lithium plating if temperature drops too low
• Mechanical stress on the battery structure

Users can charger their batteries quickly only when they need to multiple batteries. When you need to charge your battery regularly but not in a hurry you should use moderate charging power to maintain its long-term capability voltage limit.

Troubleshooting Common Charging Issues

Battery Heats Up Significantly During charging process

The battery can reach moderate heat during charging yet a sign of system failure shows when it gets too hot as a result of charging.

Possible causes:

• High charging rate does not match the battery needs
• Damaged battery with increased internal resistance
• Poor quality charger without proper current regulation
• Excessive ambient temperature

Solutions:

• Reduce charging current
• Use a better-quality charger
• Ensure adequate ventilation
• Take out the battery if it maintains heat levels that cause harm when you charge it.

Charger Indicates Full But Battery aa charger Dies Quickly

When a battery fully charges yet has a fast power loss speed may signal either lithium battery aging or a charger equipment failure.

Possible causes:

• The battery loses power at an older age.
• The charging system cannot give a battery full energy charges
• Internal battery malfunction has raised its natural power loss constant current charging
• When used in appliances this battery loses its ability to work effectively

Solutions:

• Check the battery strength by connecting it to a charger that shows analysis results
• Test it with another functioning charger
• Get rid of the battery when its performance falls below standard values
• Look for the device’s higher energy use multi bay chargers.

Battery Never Reaches “Full” Status on Charger

An endless charging process before the battery reaches its full charge status creates problems.

Possible causes:

• The battery interior needs repair because its electrical paths show excessive opposition
• Charger is faulty or incompatible
• Poor connection between battery and charger contacts
• The battery protection device in the protected battery seems to experience an internal error charging speed.

Solutions:

• Use cleaners to contact the battery terminals and charger connectors
• Try a different charger
• Look for any physical damage on the battery during examination
• Change the battery when it keeps losing power during charging

Conclusion

There is no specific constant duration to charge an 18650 battery since many conditions affect charging time. Your battery charging speed varies because it depends on both battery power size and charging provider settings plus your charger power rating and air temperature. Normal charging for consumer applications takes 2 to 8 hours to charge but quick recharging will reduce overall battery life.

Your main concern should focus on learning proper charging methods rather than setting specific charging times. Using recommended battery chargers and keeping a watch on charge environment protects lithium-ion battery safety while maintaining proper operation. Our main objective in charging needs to balance charging speeds with measures that keep batteries efficient and long-lasting.

Integrating these methods will help you reach better battery performance right now and achieve longer life for your 18650 batteries. The success of your devices that run on 18650 batteries depends on how well you charge them, so it’s not merely a guess .
